Copper Water Tube

The copper water pipes produced by our company are the best choice for water supply, gas supply and heating pipeline systems, and are widely used in cold and hot water supply and drainage of buildings, direct drinking water, gas, medical, food, chemical and other fields. Contact Loong, one of the specialized copper pipe wholesale suppliers, for the copper water tube price.

Products

At China Loong Copper Co.,Ltd, we specialize in providing customized OEM services for a wide range of copper products. From precision copper components to large-scale industrial materials, we offer tailored solutions to meet your specific requirements. Our advanced manufacturing capabilities and commitment to quality ensure that your designs are brought to life with precision and reliability. Partner with us for innovative copper solutions that elevate your brand and performance.

Copper Water Tube Certifications

Copper Water Tube Video

Copper Water Tube Performance Advantages

Clean internal and external surfaces

High temperature and high pressure resistance

Health

Durable

With a commitment to excellence, Loong has established itself as one of the professional and prominent copper pipe wholesale suppliers in the market, providing high-quality solutions for diverse needs.

Copper Water Tube Application Fields

plumbing

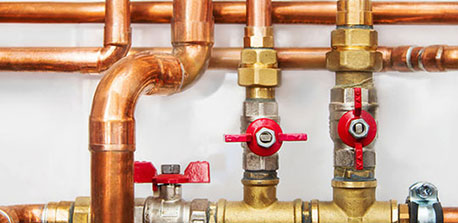

water-supply-pipeline

Copper Water Tube Performance Parameter

DN(Inch)	O.D.(mm)	thickness/mm			Maximum working pressure p/(N/mm2)
		K	L	M	Hard state（Y）Hard			Semi-hard（Y2）Half Hard			Soft state(M) Anneal Hard
		K	L	M	K	L	M	K	L	M	K	L	M
1/4	9.52	0.89	0.76	–	1.73	10.75	–	10.1	8.53	–	8.33	7.03	–
3/8	12.7	1.24	0.89	0.64	13.34	9.35	6.56	10.59	7.42	5.21	6.12	6.12	4.29
1/2	15.88	1.24	1.02	0.71	10.49	8.53	5.84	8.33	6.77	4.64	5.58	5.58	3.82
5/8	19.05	1.24	1.07	–	8.65	7.41	–	6.87	5.88	–	4.85	4.85	–
3/4	22.23	1.65	1.14	0.81	9.94	6.74	4.73	7.89	5.35	3.75	4.41	4.41	3.09
1	28.58	1.65	1.27	0.89	7.63	5.81	4.02	6.05	4.61	3.19	3.8	3.8	2.63
11/4	34.93	1.65	1.4	1.07	6.19	5.22	3.96	4.91	4.14	3.14	3.41	3.41	2.59
11/2	41.28	1.83	1.52	1.24	5.79	4.78	3.88	4.6	3.79	3.08	3.13	3.13	2.54
2	53.98	2.11	1.78	1.47	5.08	4.27	3.51	4.04	3.39	2.78	2.79	2.79	2.29
21/2	66.68	2.41	2.03	1.65	4.69	3.93	3.18	3.72	3.12	2.52	2.57	2.57	2.08
3	79.38	2.77	2.29	1.83	4.52	3.72	2.96	3.59	2.95	2.35	2.43	2.43	1.94
31/2	92.08	3.05	2.54	2.11	4.29	3.55	2.94	3.4	2.82	2.33	2.32	2.32	1.92
4	104.78	3.4	2.79	2.41	4.2	3.43	2.95	3.33	2.72	2.34	2.24	2.24	1.93
5	130.18	4.06	3.18	2.77	4.03	3.14	2.73	3.2	2.49	2.16	2.05	2.05	1.78
6	155.58	4.87	3.56	3.1	4.05	2.94	2.55	3.21	2.33	2.02	1.92	1.92	1.67
8	206.38	6.88	5.08	4.32	4.32	3.16	2.68	3.42	2.51	2.13	2.07	2.07	1.75
10	257.18	8.59	6.35	5.38	4.32	3.17	2.68	3.43	2.52	2.13	2.08	2.08	1.75
12	307.98	10.29	7.11	6.45	4.33	2.96	2.68	3.43	2.35	2.13	1.94	1.94	1.76

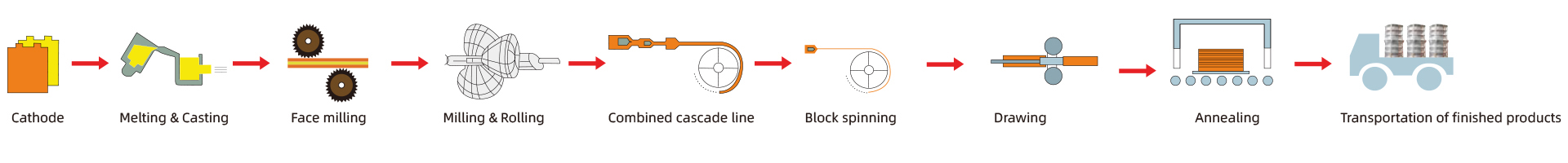

Copper Water Tube Production Process

The conventional production process:

1

Cathode


2

Melting & Casting


3

Face milling


4

Milling & Rolling


5

Combined cascade line


6

Block spinning


7

Drawing


8

Annealing


9

Transportation of finished products



Copper Water Tube Executive Standard

Product performance standards: GB/T18033, ASTM B88, EN1057, AS1432

Copper Water Tube Production Equipments

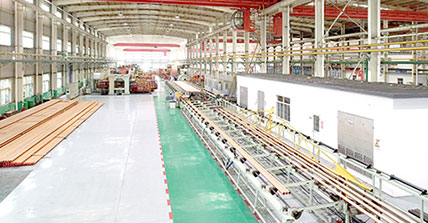

face-milling-machine-copper-tube

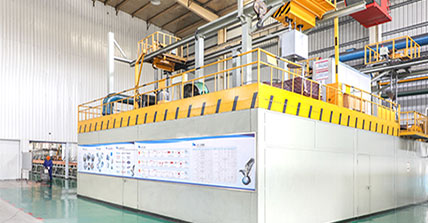

horizontal-continuous-casting-furnace_1649991206

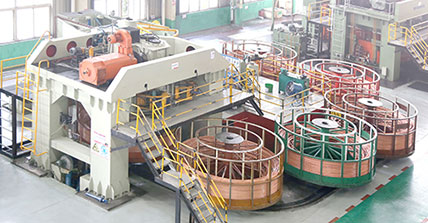

pulling-machine

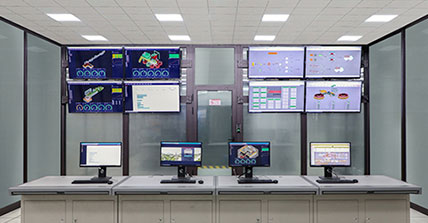

scada-data-acquisition-and-monitoring-control-system

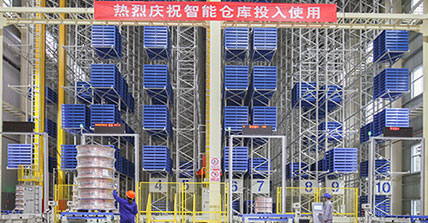

smart-warehouse

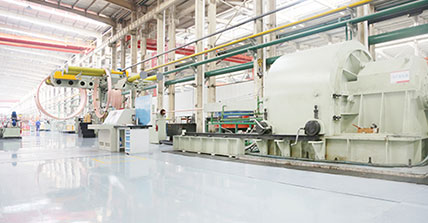

three-roll-planetary-mill
